LED Pixel Protocol WS2815

Overview

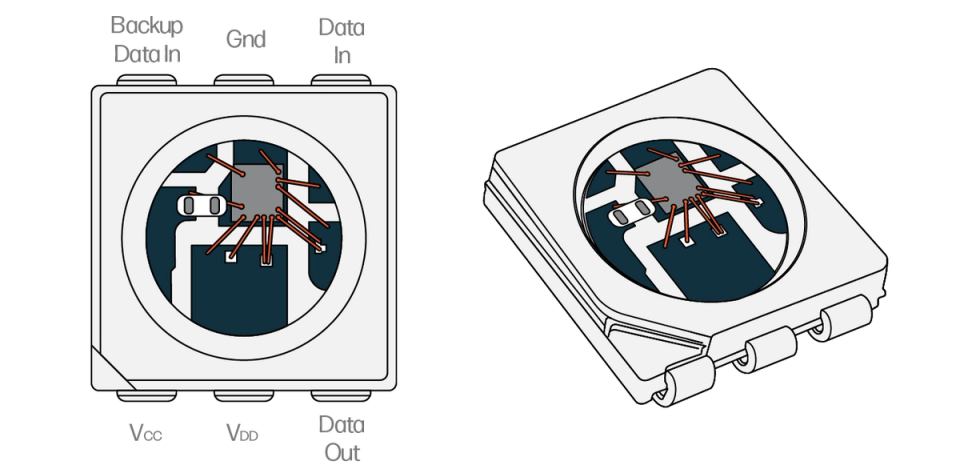

This pixel protocol was designed by World Semi in China. WS2815 offers many of the benefits the WS28xx series is famous for. It uses 12V as its main power input for each chip, VDD, which is then dropped down to 5V inside each pixel for its logic requirements. This allows longer chains of pixels to driven in series, making it one of the most common protocols for pixel lighting displays. The control circuit and LEDs are integrated in a 5050 SMD package, which provides a small physical footprint for each pixel.

Specifications

PixLite Mk1

PixLite Mk2

PixLite Mk3

Clock Type

Data-Only

Color Resolution

Bits

Current Control

Physical Package

SMD5050 with integrated LEDs

RGB

RBGW

Input Voltage

12V

Output Pixel Voltage

12V

PWM Rate

2000Hz

Suitable Camera

Up to 67fps

Data Transfer Rate

800kbps

Redundant Data Line

Colors

Color

Brightness

Wavelength

Red

360 mcd

620 – 625 nm

Green

1150 mcd

515 – 525 nm

Blue

220 mcd

465 – 475 nm

Considerations for Use

Advantages

  • 12V operation, allows for long cable lengths and long chains of pixels
  • High PWM rate allows for filming these pixels with cameras up to 67fps
  • Redundant data line reduces chance of entire strip failure

Disadvantages

  • Data-only restricts refresh rates to be limited by the speed of the protocol, which can be slow
  • Only 8 bits of data for each color makes dimming curves less smooth

Operational Behavior

WS2815 has been known to induce defects during manufacturing which cause the pixels to display erratic behavior for a brief moment after power up. If this is a concern, then SK6813 could be considered as an alternative. While many of the features of SK6813 are adopted from WS2815, the design of SK6813 reduces the chance of these same defects during manufacturing. This design sets it apart, making it a more reliable and stable choice.

PixLite Support

Are you looking for WS2815 pixel drivers that work with Art-Net or sACN?

All PixLite Mk2 and Mk3 products support WS2815 as an available Pixel IC type, so get in touch with us to find out how the lighting specialists at Advatek can support you in your pixel lighting project.
