LED Pixel Protocol UCS2603

Overview

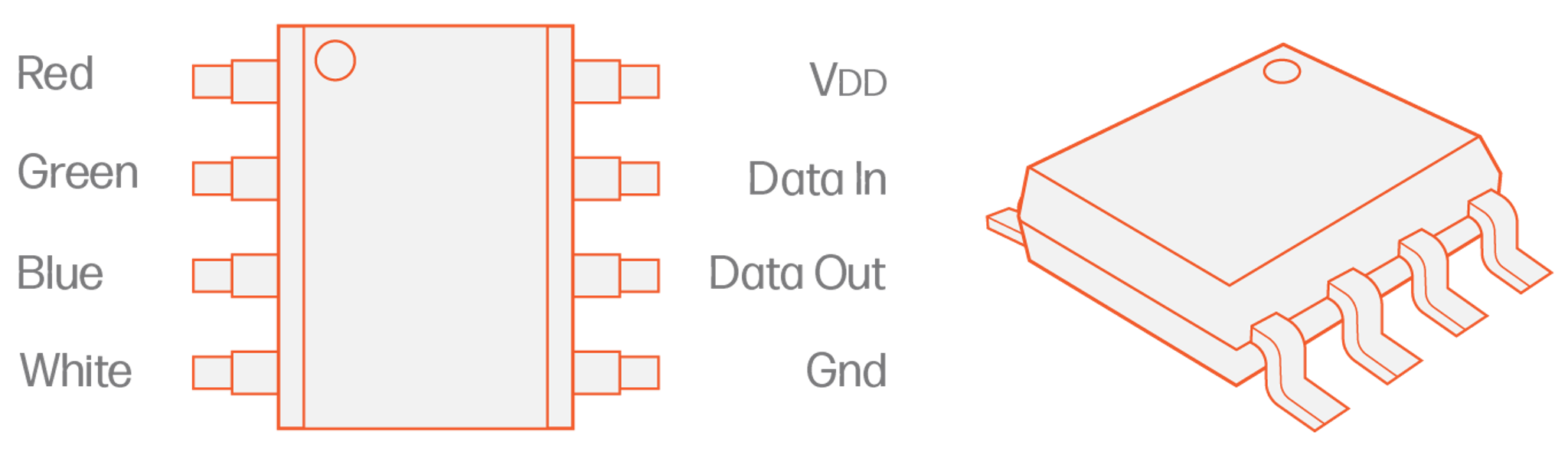

UCS2603 was designed by Lianxinke in China. The control circuit comes in a SOP8 package, allowing for more flexibility with LED choice.

Current Control

UCS2603 has the ability to digitally control the current of the connected LEDs. Use the 4-bit current control per color to lower the brightness without sacrificing resolution, and tune the current of individual colors, allowing for more accurate color mixing. This individual current control can be set when configuring your PixLite Mk3 controller.

Specifications

PixLite Mk1

PixLite Mk2

PixLite Mk3

Clock Type

Data-Only

Color Resolution

Bits

Current Control

Per Color: Bits

Physical Package

SOP8

RGB

RBGW

Input Voltage

5V

Output Pixel Voltage

28V

PWM Rate

8000Hz

Suitable Camera

Up to 267fps

Data Transfer Rate

800kbps

Redundant Data Line

Considerations for Use

Advantages

  • Very high PWM rate allows for filming these pixels with cameras up to 267fps
  • Up to 28V, allowing for very long cable lengths
  • Redundant data line reduces chance of entire strip failure

Disadvantages

  • Data-only restricts refresh rates to be limited by the speed of the protocol, which can be slow
  • Only 8 bits of data for each color makes dimming curves less smooth

PixLite Support

Are you looking for UCS2603 pixel drivers that work with Art-Net or sACN?

All PixLite Mk3 products support UCS2603 as an available Pixel IC type, so get in touch with us to find out how the lighting specialists at Advatek can support you in your pixel lighting project.
