LED Pixel Protocol SK6818

Overview

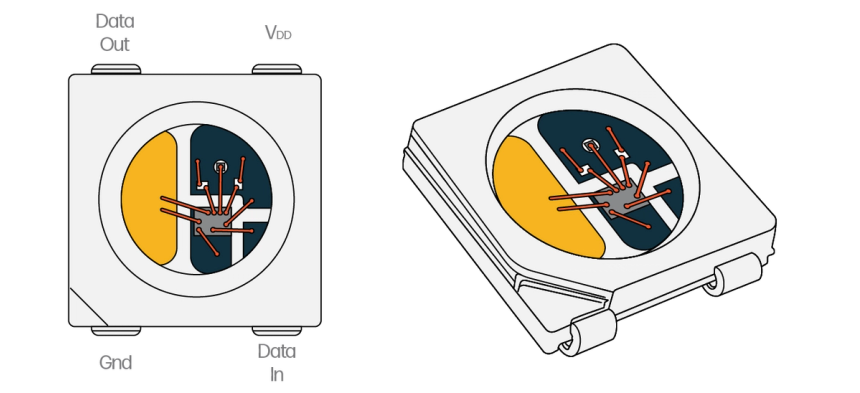

This pixel protocol was designed by OPSCO in China. This simple pixel protocol offers quality at an affordable price, which is why SK6818 is one of the most common protocols for pixel lighting displays. It offers all the same features as its RGB version, SK6822, but is dedicated to RGBW. The control circuit and LEDs are integrated in a 5050 SMD package, which provides a small physical footprint for each pixel.

Specifications

PixLite Mk1

PixLite Mk2

PixLite Mk3

Clock Type

Data-Only

Color Resolution

Bits

Current Control

Physical Package

SMD5050 with integrated LEDs

RGB

RBGW

Input Voltage

5V

Output Pixel Voltage

5V

PWM Rate

1200Hz

Suitable Camera

Up to 40fps

Data Transfer Rate

800kbps

Redundant Data Line

Colors

Color

Wavelength

Red

620 – 630 nm

Green

515 – 525 nm

Blue

460 – 470 nm

White

2700 – 7000

Considerations for Use

Advantages

  • High PWM rate allows for filming these pixels with cameras up to 40fps
  • Presence of white LED allows for higher brightness and more color mixing options

Disadvantages

  • Data-only restricts refresh rates to be limited by the speed of the protocol, which can be slow
  • Only 8 bits of data for each color makes dimming curves less smooth
  • Limited to 5V, causing short cable lengths
  • No redundancy in data
