LED Pixel Protocol UCS9812

Overview

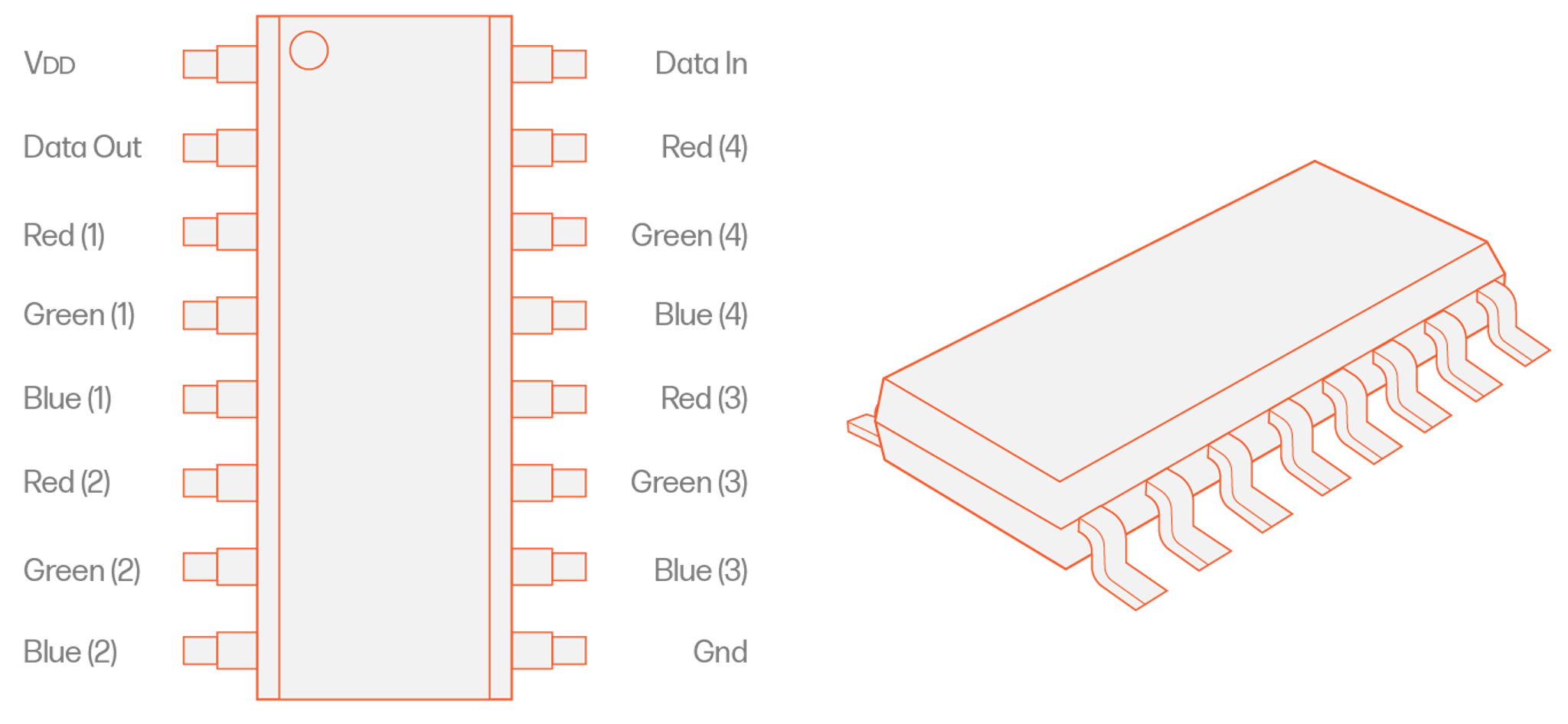

This pixel protocol was designed by Lianxinke in China. UCS9812 is equipped with all the same features as its previous version, UCS8903, but supports 4 RGB pixels off the one chip. The control circuit comes in a SOP16 package, allowing for more flexibility with LED choice.

Current Control

UCS9812 has the ability to digitally control the current of the connected LEDs. Use the 4-bit global current control to lower the brightness without sacrificing resolution. This global brightness control can be set when configuring your PixLite Mk3 controller.

Specifications

PixLite Mk1

PixLite Mk2

PixLite Mk3

Clock Type

Data-Only

Color Resolution

16 Bits

Current Control

Global: Bits

Physical Package

SOP16

RGB

RBGW

Input Voltage

5V

Output Pixel Voltage

24V

PWM Rate

1024Hz

Suitable Camera

Up to 35fps

Data Transfer Rate

1100kbps

Redundant Data Line

Considerations for Use

Advantages

  • Up to 24V, allowing for very long cable lengths
  • High PWM rate allows for filming these pixels with cameras up to 35fps
  • 16 bits of data for each color makes dimming curves very smooth
  • Drives 4 pixels off a single SOP16 chip.

UCS9812 Disadvantages

  • Data-only restricts refresh rates to be limited by the speed of the protocol, which can be slow
  • No redundancy in data

PixLite Support

Are you looking for UCS9812 pixel drivers that work with Art-Net or sACN?

All PixLite Mk2 and Mk3 products support UCS9812 as an available Pixel IC type, so get in touch with us to find out how the lighting specialists at Advatek can support you in your pixel lighting project.
